Mesin las pipa hdpe | SHD 630 | Mesin las hdpe murah | Bada
mesin las pipa hdpe

Mesin las pipa HDPE | Alat penyambung pipa hdpe

Mesin las pipa Hdpe atau yang sering disebut alat penyambung pipa HDPE adalah mesin las pipa HDPE yang di rancang khusus untuk menpermudahkan proses pengerjaan penyambungan pipa  PE, PP, PVDF dan fitting HDPE



Basic Specification

ColorRed
TypeSHD630/315
Work power380V 50Hz 3 phases
CertificteCE
After sale serviceExcellent

Mesin las pipa hdpe | Brand BADA

Detail Description

SHD630 hydraulic PE pipe joint welding machine from 315mm to 630mm; PE Welding machine; Butt fusion welding machine; PE Welder

The main parameters:
Model
SHD630
Pipe Size (mm)
315,355,400,450,500,560,630
Heating Plate Max. Temp.
270°c
Temp. deviation in surface (170~250)
±7°c
Pressure adjustable ranges
0˜6.3MPa
Working voltage
380V,50Hz
Heating plate power
9.35KW
Planing tool power
1.5 KW
Hydraulic unit power
1.5 KW
Total power
12.35 KW
Weight
617Kg
Packing dimension
Basic frame
1680×1280×1240
Support
860×1160×1480
Hydraulic unit
740×490×620






Optional Parts

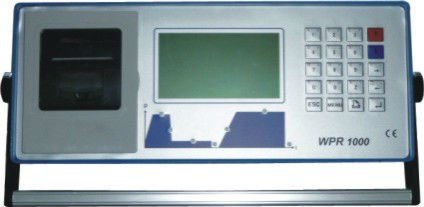

Data Logger System


Good quality and excellent after sale service
CE  ISO90001
